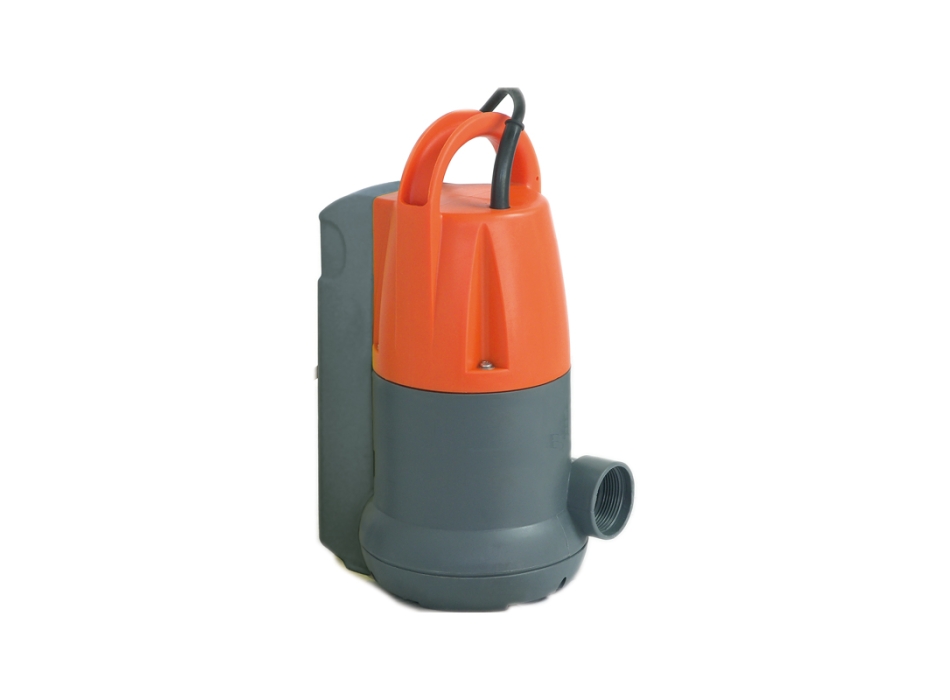

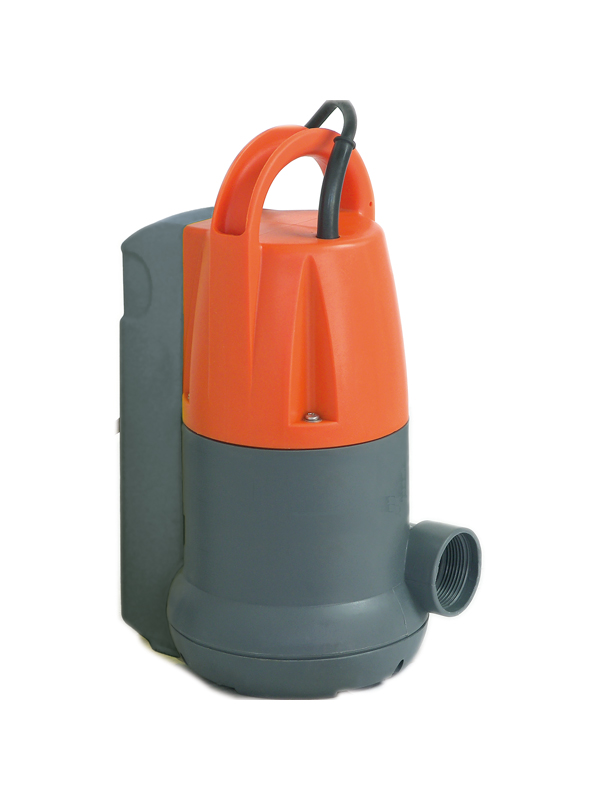

SUBMERSIBLE DRAINAGE PUMPS SDC 550 G

Code: WP1278910

€ 82,20 € 131,42

quantity:

OPERATING CONDITIONS

- Liquid temperature up to 35°C
- Submersion depth 5 mt.
- Grain size inlet        - SDC 550G Ø 5 mm
- Min. suction level      - SDC 550G Ø 15 mm

MOTOR

- Built-in overload motor protector
with automatic reset
- Permanent split capacitor
- Insulation Class F
- Protection IP 68

MATERIALS
                                                               SDC 550 G
-Handle Moplen
- Pump body          Moplen
-Impeller Noryl
- Motor casing         Stainless Steel
- Shaft with rotor       Stainless Steel
- Mechanical seal       ( SDC 550 G )

TIPO - TYPE	SDC 550 G
Potenza - Power	550 Watt
Tensione - Voltage	230 V
Frequenza - Frequency	50 Hz
Ampere	2
Q max.	165 l/1’
H max.	8 m
Dnm-Dna	1"½
